Permanent Christmas Lights: How To Measure Your Roof For Installation

September 5th, 2024 | 6 min read

By Tom Salmon

If you're reading this article, it's likely that you need to measure your roof to figure out how much your permanent lighting solution is going to cost. Permanent lights are priced by the foot, but you might not know how many feet you have or what tools you need to measure your roof.

Here at Lux Lights, we have measured over a million feet of roofline.

Because we've done so much of this, we've put together this guide to show you how to do this on your own so that you don't get caught off guard by your pricing quote.

Photo template for new logo versions 13

Why Does An Accurate Measurement Of Your Roofline Matter For Permanent Christmas Lights?

Accurate roof measurements are crucial if you’re planning a DIY installation, as they help ensure you purchase the right amount of materials, avoiding over-ordering or under-ordering, which can lead to unnecessary costs or delays.

If you’re considering professional installation, these measurements can give you a rough draft of what to expect in terms of pricing and help you keep companies honest with their measurements. This way, you’ll have confidence that you’re getting a fair quote and a well-executed lighting display.

Tools You'll Need To Measure Your Roofline For Permanent Christmas Lights

To get started with measuring your roof for permanent holiday lighting, gather the following tools:

  • Tape Measure: A standard tape measure will help you measure smaller sections of your roofline accurately.
  • Ladder: Necessary for physically measuring higher sections of your roof. Ensure it is stable and you are using proper safety gear.
  • Measuring Wheel: Ideal for walking the roofline and measuring longer distances.
  • Google Maps: An excellent tool for getting a quick estimate of your roof dimensions using satellite images.
  • Building Plans: If you have a newer home, these plans can provide precise roofline measurements.
  • Smartphone with a Measurement App: Useful for measuring angles and calculating slopes.

Permanent Christmas Lights Roofline Measurement Guide Step-by-Step Measurement Guide

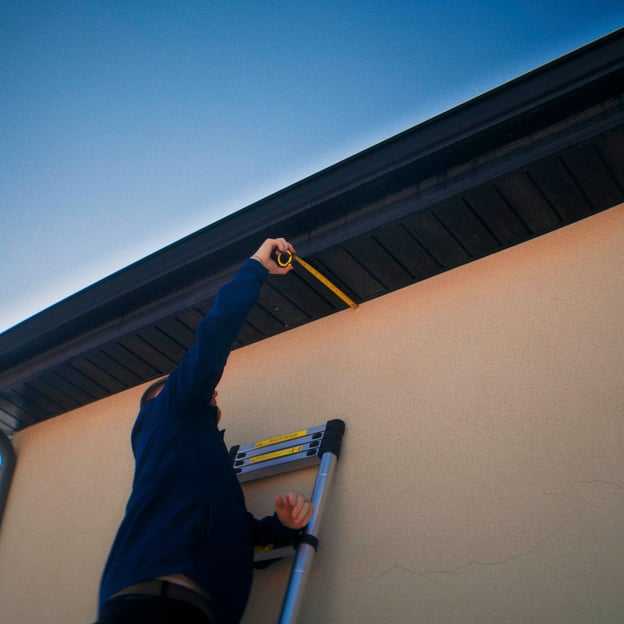

Step 1: Measuring Soffit Panels

The soffit is the underside of your roof's overhang, where your permanent lights will often be installed. Most soffits are made of aluminum, vinyl, or wood, and keep moisture away from the rafters. This helps reduce the chances of mold. It also helps preserve the life of the materials. Measuring the soffit panels accurately is crucial as they often determine the length of the roofline where lights will be installed. Here’s how to measure:

  1. Get a Tape Measure: A standard tape measure works fine for this task.
  2. Climb Safely: Using a ladder, reach the soffit panels. Always ensure your ladder is stable and you're using proper safety gear. If you are uncomfortable with heights or unsure about ladder safety, consider hiring a professional.
  3. Measure a Single Panel: Measure one of the soffit panels from edge to edge. Common panel widths are either 12 inches (1 foot) or 16 inches. Knowing the panel width helps in calculating the total roofline length.
  4. Count the Panels: Count the number of panels along the roofline.
  5. Calculate the Total Length:
    • For 16-inch panels: Divide the number of panels by 3 (to get the number of feet) and multiply by 4.
    • For 12-inch panels: Simply count the panels, as each one represents one foot.

Example Calculation: If you have 48 panels of 16 inches each:

  • Divide 48 by 3 = 16
  • Multiply 16 by 4 = 64 feet

This method ensures you have an accurate measurement of the roofline length based on the soffit panels, which is crucial for estimating the amount of lighting needed. This is important as you only want to measure the areas where the lights will actually be installed.

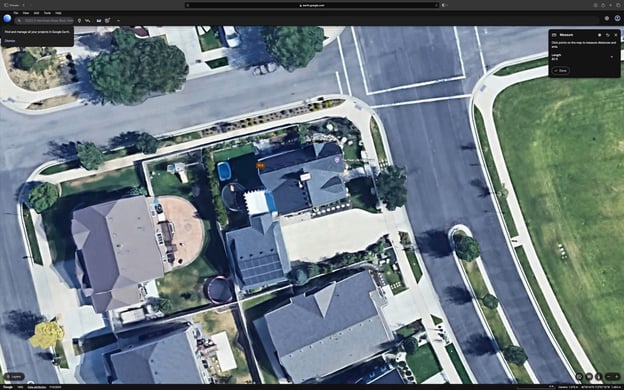

Step 2: Using Google Maps

For those who prefer not to climb or need a quick estimation, Google Maps’ Satellite View offers a practical solution. This method allows you to get an aerial view of your property and measure the roofline without physically accessing the roof. Here's how to do it:

  1. Open Google Maps: Go to Google Maps and enter your home address.
  2. Switch to Satellite View: Click on the Satellite View option for a detailed overhead image of your property. This view provides a clear picture of the roofline.

  1. Use the Measure Tool:
    • Right-click on the starting point of your roofline.
    • Select the "Measure distance" option.
    • Click along the roofline to draw a path. Each click adds a segment, allowing you to trace the entire perimeter.
    • Google Maps will show the total distance in feet or meters, depending on your settings.

This method is convenient for getting a rough estimate and is particularly useful for planning purposes. However, it's essential to verify these measurements with physical measurements or building plans for accuracy.

Step 3: Using a Measuring Wheel and Calculating Peaks and Gables

If soffit panels are not visible or accessible, a measuring wheel can be an effective tool. A measuring wheel is a simple yet effective tool for measuring long distances accurately. They do this via a counting mechanism that counts the number of rotations and utilizes the circumference of the wheel to calculate the distance measured. For more complex rooflines with peaks and gables, additional calculations are needed using basic trigonometry. Here's how to proceed:

  1. Get a Measuring Wheel: These are available at most hardware stores and are designed to measure long distances accurately. They are particularly useful for measuring ground distances and roof perimeters.
  2. Walk along the ground while viewing the Roofline: Walk along the ground and try to line up with the roofline as best you can.
  3. Record the Measurement: Note the total distance recorded by the measuring wheel, which will give you a rough estimate of your roofline length. This measurement is crucial for determining the amount of lighting required.

For more complex roof structures involving peaks and gables, you can use your smartphone to measure angles. Modern smartphones come equipped with measurement apps that can measure angles accurately. Here's how to do it:

  1. Open a Measurement App: Use a measurement app on your smartphone that can measure angles.
  2. Measure the Angle of the Slope: Place your phone on the roof slope or align it with the slope. The app will show the angle in degrees. This angle is essential for calculating the slope length.
  3. Calculate the Slope Length:
    • Measure the base length of the gable horizontally.
    • Use the formula: Slope Length = Base Length/cos (Angle)
    • Example: If the base length is 10 feet and the angle is 30 degrees:
      • Slope Length = 10 / cos(30°) ≈ 10 / 0.866 ≈ 11.55 feet

This calculation helps in determining the accurate length of the roof slopes, ensuring that you have sufficient lighting for these areas.

Step 4: Using Building Plans

For newer homes, building plans can provide precise measurements. Building plans are detailed documents that include all dimensions of your home, including the roofline. If you have access to these plans, they can be an invaluable resource. Here's how to use them:

  1. Contact Your Builder: If you don't have the plans, your builder should be able to provide them. Builders keep records of all construction details and can provide you with the necessary documents.
  2. Obtain the Plans: Ensure you have a copy of the building plans that include the roofline dimensions. These plans often have detailed drawings and measurements of the entire house.
  3. Understand the Scale: Building plans use a specific scale (e.g., 1/4 inch = 1 foot). This scale will be noted on the plans. Understanding the scale is crucial for converting the measurements accurately.
  4. Measure the Roofline on the Plan: Use a ruler to measure the roofline directly on the plan. This step requires precision and attention to detail.
  5. Calculate the Actual Length:
    • Multiply the measurement you took on the plan by the scale factor.
    • For example, if the scale is 1/4 inch = 1 foot and your measurement on the plan is 10 inches, the actual roofline length is 10 x 4 = 40 feet.

Using building plans ensures you have the most accurate measurements, as these documents are created based on the actual construction details of your home.

Why Professional Measurement Might Be Needed to Install Permanent Christmas Lights

While DIY measurement is feasible, professional assessment ensures precision, especially for complex rooflines. Professionals use advanced tools like laser measuring devices, providing accurate results and preventing potential safety hazards. Here's why you might consider professional measurement:

  1. Complex Rooflines: If your roof has multiple peaks, valleys, and gables, professional measurement ensures all areas are accurately measured.
  2. Safety Concerns: Climbing ladders can be dangerous. Professionals have the training and equipment to perform these tasks safely.
  3. Precision Tools: Professionals use advanced tools like laser measuring devices, which provide more accurate measurements than traditional methods.
  4. Time-Saving: Hiring a professional can save you time and effort, allowing you to focus on other aspects of your holiday preparations.

Next Steps After Measuring Your Roof For Permanent Christmas Lights

Accurately measuring your roof for permanent holiday lighting involves understanding your soffit panels and utilizing tools like Google Maps, a measuring wheel, or building plans. For more complex roof structures, using a smartphone app to measure angles can simplify the process. Whether you choose to measure yourself or seek professional help, precise measurements ensure a smooth installation process and optimal cost estimation.

Next Steps

Now that you know how to measure your roof:

  • Get Your Measurements Ready: Use the steps above to gather your roof dimensions.
  • Contact a Professional: If you're unsure or have a complex roof, professional measurement is recommended.
  • Plan Your Lighting: With accurate measurements, you can start planning your permanent holiday lighting installation, knowing exactly how much lighting you need.

Your next step is to use these measurements to request a quote from Lux Lights. We’re happy to review your measurements and help you design the perfect holiday lighting system that suits your home and your style.

By following this guide, you’re one step closer to a beautifully lit home with permanent holiday lights. Let us help you make the season bright—contact us today!
